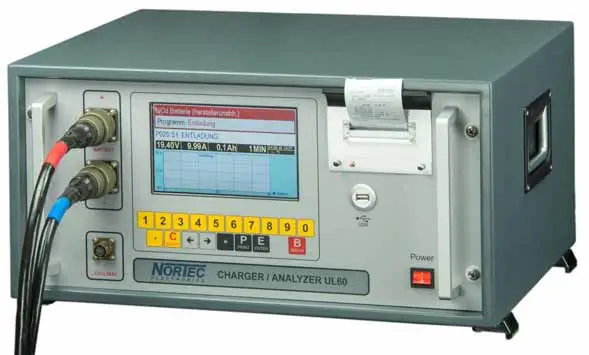

UL60 (Nortec Electronics) Features and Specifications *
The Nortec UL60 Battery Charger/Analyzer stands out as one of the most cost-effective yet advanced solutions in today’s aircraft battery maintenance market. In a field traditionally dominated by heavy, high-cost equipment such as the Christie RF80-M or the JFM SuperMasterCharger Plus BTAS, the UL60 delivers a combination of modern engineering, affordability, and operational convenience that makes it an extremely attractive alternative. Its price point is generally lower than comparable analyzers, allowing maintenance organizations to equip themselves with a state-of-the-art device without stretching budgets.
What makes the UL60 especially appealing is its rich feature set. With fully automated charge, discharge, residual discharge, and capacity testing cycles, it eliminates manual oversight and ensures compliance with all major OEM maintenance manuals, including SAFT, Hawker, Marathon Norco, Concorde, and Gill. Its support for NiCd, Lead-Acid, and optional Lithium batteries — with capacities up to 900 Ah — gives it broad application across aviation, rail, and UPS sectors. Unlike some older analyzers that require external PC software or proprietary interfaces, the UL60 is a true standalone unit with Ethernet, USB, and RS232 connections for logging, remote monitoring, and seamless software updates.
From a practical standpoint, the UL60 is also designed with technician-friendly usability in mind. Its 7″ TFT display provides intuitive menu navigation, while its optional cell measurement adapters allow for fully automated cell-by-cell testing. At 32 kg, the unit is almost half the weight of bulkier competitors like the RF80-M, making it easier to move around the shop or deploy in field operations. Maintenance is simplified as well — operators can perform self-calibration using the PG-UL60 tool and carry out software updates on-site, eliminating costly downtime or shipping delays.
When compared to the Christie RF80-M, the UL60 delivers similar current capabilities (up to 60 A, with 40 A above 31 V), but in a smaller, lighter, and more modern package. Against the JFM SuperMasterCharger Plus BTAS, the UL60 provides automation and compliance without requiring external test systems, which can significantly reduce overall investment costs. Add to this its Made in Germany build quality and its registration under NATO NSN 6625-12-397-1233, and the UL60 emerges as not only a high-performing unit but also a strategically smart investment for both civil and military operators.
Ultimately, the combination of competitive pricing, versatile capabilities, and user-centric design makes the Nortec UL60 one of the most attractive charger/analyzer options available on the market today. It is a solution that delivers long-term savings, operational flexibility, and uncompromising reliability — exactly what battery maintenance teams are looking for in the next generation of aviation support equipment.
The Nortec UL60 price and features make it a very attractive option compared to similar Battery Charger/Analyzer available on the market.
Features
- Reliable capacity test in accordance with manufacturer maintenance manuals.
- Fully automated charge, discharge, and maintenance processes.
- Ethernet interface (TCP/IP) for remote monitoring, data logging, and printing.
- USB and RS232 ports for software updates and data storage.
- Menu-guided program selection with 7″ TFT display.
- Compatible with NiCd, Lead-Acid, and optional Lithium batteries.
- Network-compatible; supports external printers.
- Cell measurement adapters available for automated single-cell monitoring.
- Made in Germany, high reliability design.
Benefits
- Universal usage: manufacturer-independent, works with all standard aircraft batteries.
- Time savings: process shortening and improved measuring accuracy.
- Compliant with major OEM CMMs (SAFT, Hawker, Marathon Norco Aerospace, Concorde, Gill).
- Stand-alone system: no extra software/hardware needed.
- User-maintainable: self-calibration (PG-UL60) and software updates by the operator.
- Portable: lightweight (32 kg compared to other industry analyzers).
- NSN number available: 6625-12-397-1233 (military/aviation catalog reference).
Capabilities
- Charge and discharge with constant current (0.1 – 60 A).
- Output range: 0.5 – 40 VDC / 0.5 – 60 A (limited to 40 A if >31 V).
- Maintains NiCd up to 230 Ah, Lead-Acid up to 900 Ah, and Lithium up to 60 Ah (C1).
- Fully automated cycles including:
- Charge (CC, CV)
- Discharge
- Residual discharge
- Capacity test
- Automated test reporting with remote or direct printer output.
- Remote monitoring over Ethernet (TCP/IP).
- Multilingual interface: German, English, French, Russian, Danish, Dutch (others on request).
Specifications
Electrical
- Mains voltage: 230 VAC ±10%, 45–65 Hz
- Input power: 3000 VA
- Output: 0.5 – 40 VDC / 0.5 – 60 A (>31 V limited to max. 40 A)
Interfaces
- Ethernet (10BASE-T, RJ45) for PC/printer
- USB 2.0 host for software updates & data logging
- RS232 for software updates
Environmental
- Operating temperature: 0 °C to +45 °C
- Protection: IP20
Accessories
- Charging cables
- Cell measurement adapters for automated voltage/temperature monitoring
BASIC INFORMATION
|
Model Number
|
UL60 Charger/Analyzer
|
|
Part Number
|
UL60.040000
|
|
Alternate Part Number
|
|
|
Manufacturer
|
Nortec Electronics GmbH & Co. KG
|
CHARACTERISTICS
|
Shipping Weight
|
~32 kg
|
|
Shipping Dimensions
|
|
|
Weight (test set only)
|
32 kg (without cables)
|
|
Size (test set only)
|
504 × 270 × 400 mm (W × H × D)
|
