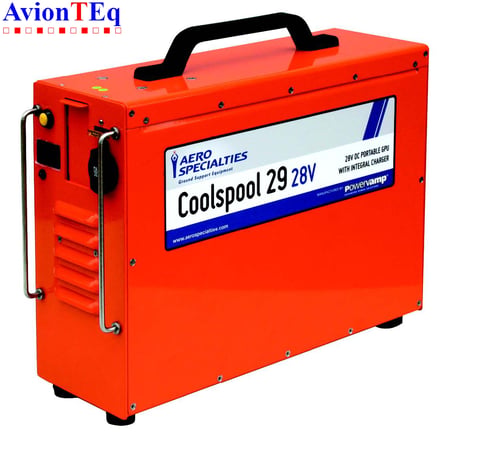

Coolspool 29 (AERO Specialties) Features and Specifications *
The Coolspool 29 is a versatile aircraft start unit designed for larger twin turbine aircraft and helicopters. It comes in two versions, offering nominal output voltages of 26V DC or 28V DC. This unit is particularly useful where additional amp/hour capacity is needed to maintain voltage under load, which is critical for ensuring reliable starts and protecting turbine life. The AERO Specialties Coolspool 29 is equipped with high-powered sealed lead-acid AGM batteries, an internal 3-stage charger for cell longevity, and a solid-state voltmeter to monitor battery voltage. Its design includes features like a corrosion-resistant aluminum case, a heavy-duty NATO connector, and a spring-loaded output cover, making it suitable for air transportation and on-board emergency use.
When compared to a 24V DC start unit of similar capacity, the Coolspool 29 provides significantly higher performance, resulting in faster spool-ups and cooler starts. This directly contributes to extending the turbine's operational life. Additionally, the unit is lightweight, with the 26V model weighing 28 kg and the 28V model weighing 29 kg, making it highly portable and practical for various aviation applications.
For added convenience and durability, the AERO Specialties Coolspool 29 28V Aircraft Portable Start Unit comes with optional extras such as a universal single trolley and a 4m NATO lead. Its robust construction, combined with features like shock-absorbent feet and a heavy-duty protective jacket, ensures that it can withstand the demands of regular aviation use while providing reliable power when needed most.
The Coolspool 29 price and features make it a very attractive option compared to similar power supply / starters available on the market.
Options
- Universal single trolley
- 4m NATO lead
- 24V inspection lamp
Features
- High powered sealed lead acid batteries
- Cleared for air transportation
- Internal charger with LED status indicator
- Corrosion resistant aluminium case with carry handle
- Controls protected by twin front protection bars
- Aircraft cable with heavy-duty NATO connector
- Spring-loaded output connector cover
- Auxiliary socket for plug-in accessories
- Solid state voltmeter with ‘push to view’ feature
- Fitted with rubber anti-slip, shock absorbent feet
- Heavy-duty canvas protective jacket
Benefits
- Enhanced Performance: Faster spool-ups and cooler starts extend turbine life.
- Portability: Lightweight design (28-29 kg) for easy transport and onboard use.
- Durability: Corrosion-resistant aluminum case and internal 3-stage charger for long-lasting battery life.
Capabilities
- Versatile Voltage Options: Available in 26V or 28V DC models.
- Advanced Monitoring: Solid-state voltmeter for easy battery voltage monitoring.
- Air Transportation Ready: Cleared for air travel, ideal for international operations.
Specifications
- Peak amps**: 2400A
- Nominal voltage:
- Standing voltage: 27.8V DC
- Amp/hour capacity: 26 Ah @ 10 hr rate (20°C)
- Operating temp: -40°C to +45°C (-22°F to + 114°F)
- Case: Aluminium with shock absorbing feet
- Voltmeter: Solid state LED, IP65
- Aircraft cable: 2m (6ft) with heavy-duty rubber NATO connector
- Charger: 1.9A 3-stage internal charger / 90–264V AC / 47–63Hz / single phase 28V DC
- NCAGE: KD628
** Peak amps is a theoretical calculation of the instantaneous current from a momentary dead short across the battery terminals. It is not representative of the power delivered at the aircraft plug which is significantly less, due to cable losses and other factors.
BASIC INFORMATION
|
Part Number
|
Coolspool 29
|
|
Manufacturer
|
AERO Specialties
|
CHARACTERISTICS
|
Weight (test set only)
|
63 lbs. (29kg)
|
|
Size (test set only)
|
16in x 5in x 13in
|
* AERO Specialties Coolspool 29 technical specifications is provided for reference only. Avionteq cannot ensure accuracy of the technical specifications presented herein. The technical data may not relate entirely to all model and versions of the Coolspool 29 such as the models sold by Avionteq.
