FPT 8800 (Artex) Features and Specifications *

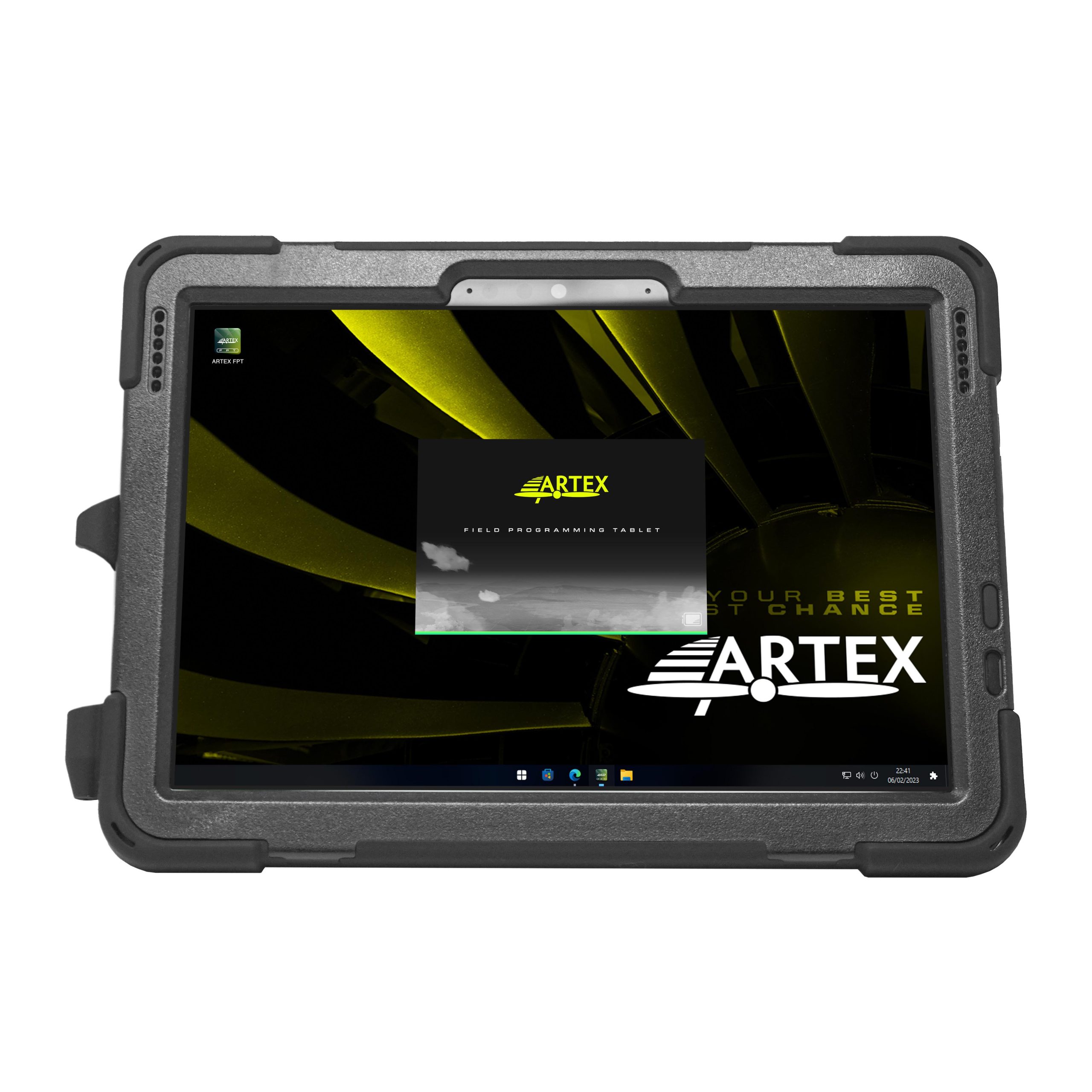

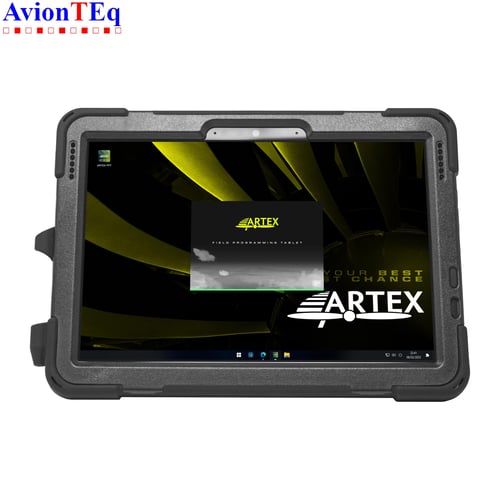

The ARTEX FPT 8800 ELT Tester is an advanced field programming tablet designed for managing and programming ARTEX Emergency Locator Transmitters (ELTs). This device utilizes the Microsoft Surface framework, providing a user-friendly interface that simplifies the programming process. It is specifically designed to retrofit easily with existing ELTs, eliminating the need for third-party programming and streamlining maintenance procedures. It is a cost-effective solution that enhances efficiency and reliability in ELT management.
The key features include an intuitive user interface that makes programming ELTs straightforward, reducing potential errors and saving time. It offers comprehensive data management capabilities, allowing users to store, retrieve, and verify programming data and history to ensure compliance and readiness. Additionally, the device supports full programming capabilities for desired protocols and NAV Data baud rates, with the ability to print compliance reports for record-keeping.
It is built to be a future-proof technology with regular software updates to stay ahead of industry standards and regulations. It includes advanced security features such as a hardware TPM 2.0 chip, enterprise-grade protection with Windows Hello face sign-in, and a secured-core PC setup with Windows 11. The tablet's hardware specifications include an Intel Processor N200, 8GB LPDDR5 RAM, 64GB UFS Drive, and a 10.5-inch PixelSense display, providing robust performance for field and bench applications.
The price and features make it a very attractive option compared to similar ELT testers available on the market.
Programming Capabilities
|
|
FPT 8805
|
Tablet and software only
|
|
FPT 8806
|
ELT 345, 1000 and ME406
|
|
FPT 8807
|
ELT 345, 1000 and ME406, C406-N, C406-1, C406-2, B406-4, and G406-4
|
|
FPT 8808
|
ELT 345, 1000 and ME406, ELT 3000/4000 series, C406-N, C406-1, C406-2, B406-4, and G406-4
|
|
FPT 8809
|
ELT 4000S
|
Features
- Microsoft Surface Tablet Based: Provides a user-friendly interface and a familiar, intuitive experience.
- Intuitive User Interface: Simplifies programming with easy-to-navigate menus, reducing potential for errors.
- Comprehensive Data Management: Allows storage, retrieval, and verification of programming data and history.
- Full Programming Capabilities: Supports programming for desired protocols and NAV Data baud rates.
- Printing Capability: Can print reports for records and compliance.
- Future-Proof Technology: Regular software updates to stay ahead of industry standards and regulations.
Benefits
- Microsoft Surface Tablet Based: Provides a user-friendly interface and a familiar, intuitive experience.
- Intuitive User Interface: Simplifies programming with easy-to-navigate menus, reducing potential for errors.
- Comprehensive Data Management: Allows storage, retrieval, and verification of programming data and history.
- Full Programming Capabilities: Supports programming for desired protocols and NAV Data baud rates.
- Printing Capability: Can print reports for records and compliance.
- Future-Proof Technology: Regular software updates to stay ahead of industry standards and regulations.
Capabilities
- Retrofit Existing ELTs: Easily integrates with current ELTs, eliminating the need for new hardware.
- Precise Setting Modifications: Allows access and modification of critical ELT settings.
- Expanded Capabilities: Additional cables can be purchased to extend the functionality of any kit.
- Regular Software Updates: Ensures the device remains up-to-date with the latest industry standards and protocols.
Specifications
- Processor: Intel® Processor N200
- Graphics: Intel UHD Graphics
- Memory: 8GB LPDDR5 RAM
- Storage: 64GB UFS Drive
- Display: 10.5-inch PixelSense Display, 1920 x 1280 resolution, 220 PPI, 3:2 aspect ratio, 1500:1 contrast ratio, 350 nits brightness
- Battery Life: Up to 12.5 hours of typical device usage
- Connectivity: Wi-Fi 6, Bluetooth® Wireless 5.1 technology, USB-C 3.1, MicroSDXC card reader, 3.5 mm headphone jack
- Security: Hardware TPM 2.0 chip, Windows Hello face sign-in, Windows 11 Secured-core PC
- Operating Temperature: +32°F (+0°C) to +95°F (+35°C)
Applications
- Programming and configuration of ARTEX Emergency Locator Transmitters (ELTs)
- ELT maintenance, inspection, and compliance verification
- Aircraft ELT retrofit and upgrade support
- Aviation MRO and avionics shop ELT management
- ELT protocol and NAV data programming
- ELT data storage, retrieval, and programming history verification
- Flight line and field ELT servicing applications
- Aircraft emergency system testing and configuration
- Compliance reporting and maintenance record documentation
- Bench testing and field programming for commercial and military aircraft ELTs
BASIC INFORMATION
|
Part Number
|
FPT 8800
|
|
Alternate Part Number
|
|
|
Manufacturer
|
Artex
|
CHARACTERISTICS
|
Weight (test set only)
|
1.15 lbs (521 g)
|
|
Size (test set only)
|
9.65 x 6.9 x 0.33 inches (245 x 175 x 8.3 mm)
|
