Barfield Pitot Static Test Set, Various Models PN: 1811GA

Barfield 1811GA (101-00185) Features and Specifications *

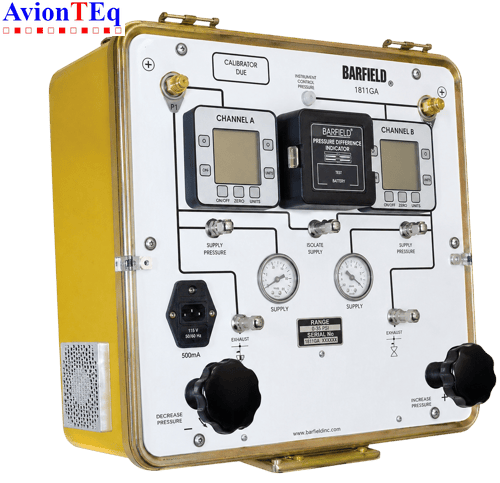

The Barfield 1811GA avionics test equipment is a portable, self-contained unit, used for testing and calibrating aircraft pitot-static systems. The tester has three instrument capability for analog (Altimeter, Vertical Speed, and Airspeed) units to perform aircraft leak tests or instrument calibrations. All 1811 series testers are configured with hand pumps and external pressure ports for supplying the necessary pressure and vacuum needed for on-board testing and calibration. The Barfield 1811 series of Air Data testers are practical for new facilities or for those with a limited budget. The unit includes two 25-ft hoses, a pitot mast adapter, a 2423F static port adapter kit and a pitot-static system cd-rom.

• Performs on-board instrument calibration checks
• Compact fiberglass case allows unit to fit in tight quarters
• Performs precision Pitot-Static leak tests
• Correction cards for all analog instruments
• Three-instrument capability for analog units with optional ranges
• Fully portable, self-contained (No electric or external pressure sources required)
• Digital instruments contain four indications (altitude, airspeed, vertical speed and mach)
• Vacuum and pressure hand pumps installed

Common Configurations:

• 1811GA425 (60-420kts, 2k ft/min, 35k ft.) analog
• 1811GA435 (60-420kts, 3k ft/min, 35k ft.) analog
• 1811GA445 (60-420kts, 4k ft/min, 35k ft.) analog
• 1811GA465 (60-420kts, 6k ft/min, 35k ft.) analog
• 1811GA625 (20-250kts, 2k ft/min, 35k ft.) analog
• 1811GA635 (20-250kts, 3k ft/min, 35k ft.) analog
• 1811GA645 (20-250kts, 4k ft/min, 35k ft.) analog
• 1811GA665 (20-250kts, 6k ft/min, 35k ft.) analog
• 1811GA423 (60-420kts, 2k ft/min, 50k ft.) analog
• 1811GA433 (60-420kts, 3k ft/min, 50k ft.) analog
• 1811GA443 (60-420kts, 4k ft/min, 50k ft.) analog
• 1811GA463 (60-420kts, 6k ft/min, 50k ft.) analog
• 1811GAAOA (20-650kts, 6k ft/min, 55k ft.) digital

* Barfield 1811GA (101-00185) technical specifications is provided for reference only. Avionteq cannot ensure accuracy of the technical specifications presented herein. The technical data may not relate entirely to all model and versions of the 1811GA such as the models sold by Avionteq.

Buy, sell, trade-in or rent Barfield 1811GA (101-00185) Pitot Static Test Set

Avionteq offers both new and refurbished or used Barfield 1811GA (101-00185) Pitot Static Test Set for sale or rent at most competitive price. All refurbished equipment are thoroughly tested and come with our warranty and fresh calibration certificate (when required). You can also sell your excess / surplus Barfield 1811GA (101-00185) or receive trade-in credit towards purchase of other test equipment.
