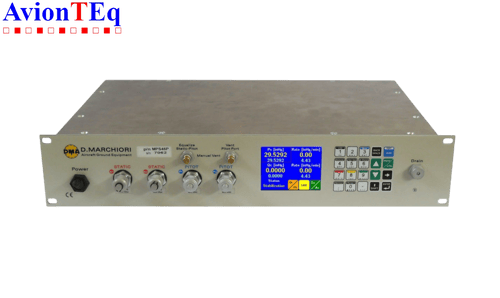

MPS-46P-B1-B3-E3 (DMA-Aero) Features and Specifications *

The DMA Aero MPS-46P-B1-B3-E3 is a high precision lab air data test set (ADTS) applicable to avionics workshop, calibration laboratory, OEM production facility and automated test environment. It is based on the MPS46P platform and comprises of internal pressure/vacuum pumps, USB (B1), Ethernet (B3) and 3+3 internally controlled pitot/static isolator valves (E3); offering maximum configurability in a compact all-in-one configuration for precision pitot-static testing. The MPS46P, which exceeds RVSM accuracy requirements and can be operated manually and automatically over a variety of communication interfaces.

The DMA Aero MPS-46P-B1-B3-E3 price and features make it a very attractive option compared to similar laboratory air data test sets available on the market. Request a quote now.

Features

• Independent control of altitude and airspeed
• Exceeds RVSM accuracy requirements
• Integrated internal pressure and vacuum pumps (P model)
• Full-color backlit LCD touchscreen display
• Built-in automatic leak check
• Controlled vent to ambient
• 30 programmable test profiles with 26 steps each
• User-programmable safety limits
• Ultra-low-speed testing (2–200 knots)
• Automatic altitude offset correction
• Ethernet communication (B3 option)
• USB communication (B1 option)
• 3+3 internal Pitot and Static isolation valves (E3 option)
• 19-inch, 2U rack-mount enclosure
• GPIB and RS232 compatible for ATE integration

Benefits

• Laboratory-grade precision exceeding RVSM requirements
• Self-contained operation with integrated pumps
• Faster testing through independent pitot and static control
• Increased safety with programmable pressure limits
• Excellent repeatability for calibration laboratories
• Easy integration into automated test systems
• Rugged 2U rack-mount design saves bench space
• Low power consumption (60 W) improves long-term reliability

Application

Compatible Aircraft:

Suitable for any aircraft utilizing conventional pitot-static systems, including:

• Airbus
• Boeing
• Bombardier
• Embraer
• ATR
• Gulfstream
• Dassault Falcon
• Textron Cessna
• Beechcraft
• Pilatus
• De Havilland Canada
• Bell Helicopter
• Leonardo Helicopters
• Sikorsky

Specifications

• Product Type: Laboratory Air Data Test Set
• Model: MPS-46P
• Configuration: B1 + B3 + E3
• Pumps: Internal Pressure & Vacuum Pumps
• Rack Size: 19-inch, 2U
• Display: Full-color LCD
• Control: Keypad & Touchscreen
• Altitude Control: -7,500 ft to 80,000 ft
• Altitude Measurement: -7,500 ft to 100,000 ft
• Airspeed Range: 10–1,000 knots (850 knots with internal pumps)
• Ultra Low Speed: 2–200 knots
• Vertical Speed: 0–6,000 ft/min
• Airspeed Slew Rate: 0–900 knots/min
• Mach Number: 0–6 Mach
• Static Pressure: 27–1300 hPa (control)
• Pitot Pressure: 10–3500 hPa
• Leak Test: Automatic
• Calibration Interval: 12 Months
• Power Supply: 90–240 VAC, 50–400 Hz
• Power Consumption: 60 W
