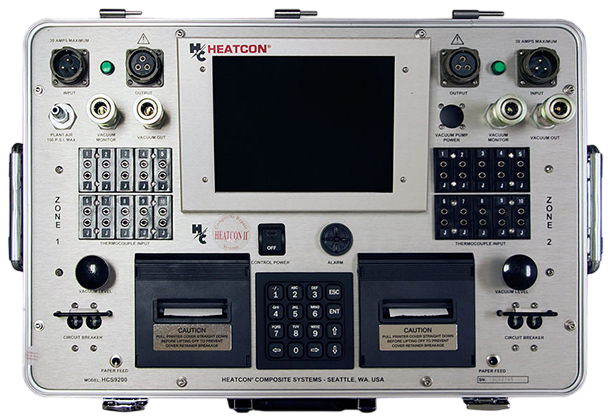

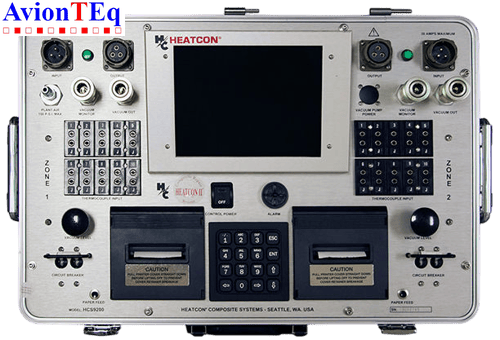

Heatcon HCS9200B Hot Bonder Composite Bonding Repair System PN: HCS 9200B

 HCS9200B (Heatcon) Features and Specifications *

The Heatcon HCS9200B can be operated by easy to follow menus on hi-resolution, hi-contrast, sunlight readable LCD screen. By heating and curing prepregs, resins or adhesives, the main system application is composite and metal bond repairs. It can also be used to control other resistive heat sources for a wide variety of manufacturing and repair applications.

• Temperature control by TC 1 or 2, hottest/coolest (automatically locates) or average of all thermocouples, mode selected by operator
• Automatic management of thermocouple break or malfunction
• Vacuum system capable of up to 28 in Hg
• HCS9200B "Slave" function runs two zones or blankets as one
• Ergonomic design, convenient hookup of all accessories
• Easy change of any cure parameter while program is running
• Store 30 programs, enter or revise from key pad
• Temperature adjustments made in increments of 1°F or C.
• External filter/trap cleans plant air
• 30 amps per zone allows bigger blankets and more heat
• Vacuum display in Millibars, in/Hg, or Kpa, user selectable
• Circuit breakers are on front panel, no fuses to replace
• Operate by easy to follow menus on Hi-Resolution, Hi-Contrast, Sunlight readable LCD Screen
• In progress graphic and numeric displays are easy to interpret
• 10 thermocouple inputs per zone per aerospace manufacturers recommendations
• Precise PID control, plus Auto-Tune for unusual situations
• Intelligent, automatic restart function after power loss
• Monitor vacuum by separate line from repair
• Adjustable vacuum level, readable before starting cure
• Operates on 90-264VAC (45-65Hz)
• Both zones on HCS9200B can be independently powered/operated
• Temperature display in Celsius or Fahrenheit, user selectable
• Multiple blanket per zone capability
• Removable lid, lightweight, portable and rugged

* Heatcon HCS9200B technical specifications is provided for reference only. Avionteq cannot ensure accuracy of the technical specifications presented herein. The technical data may not relate entirely to all model and versions of the HCS9200B such as the models sold by Avionteq.

Heatcon HCS9200B Hot Bonders to Buy, Rent, Sell or Trade in

Avionteq offers both new and refurbished or used Heatcon HCS9200B Single / Dual Zone Hot bonder Composite Bonding Repair System for sale or rent at most competitive price. All refurbished equipment are thoroughly tested and come with our warranty and fresh calibration certificate (when required). You can also sell your excess / surplus Heatcon HCS9200B or receive trade-in credit towards purchase of other test equipment.
