DLRO2 (Megger) Features and Specifications *

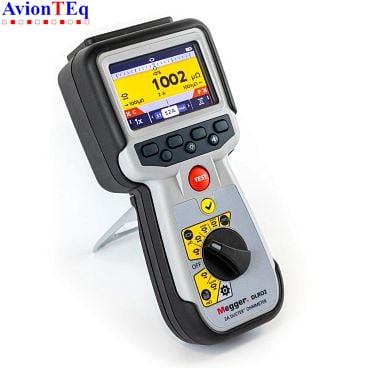

The Megger DLRO2 price and features make it a very attractive option compared to similar bonding meters/resistance testers available on the market. Conquering challenges in low resistance testing often requires more than just an ohmmeter. Technicians need a tool that delivers speed, precision, and versatility, especially in demanding environments. Introducing the Megger DLRO2 1012-280 Ducter™ Low Resistance Ohmmeter 2 Amp (DLRO2) – a handheld powerhouse designed to streamline your workflow and elevate testing confidence.

A significant innovation in the Megger DLRO2 is the introduction of the groundbreaking "Difference Meter". This feature streamlines repetitive measurements by allowing them to be effortlessly compared against an initial reference measurement. Imagine the time saved! The DLRO2's Difference Meter not only calculates the percentage difference but also translates it into a clear needle/pointer movement on the display. This visual representation eliminates the need for complex data analysis, making it incredibly easy to identify even the slightest changes in resistance readings. Consistent results and improved efficiency become the norm with the Megger DLRO2 1012-280.

Traditional ohmmeters often experience a drop in test speed when using long leads. This can be a significant bottleneck in applications where extended cable lengths are necessary. The Megger DLRO2 1012-280 tackles this challenge head-on with a dedicated long lead test mode. This innovative feature optimizes the output current to deliver up to 1 Amp into resistances as high as 4 ohms, even when using long test leads. No more time-consuming lead changes or compromised test speeds! The Megger DLRO2 with its long lead capabilities is ideal for applications like wind turbine and avionic lightning protection testing, where long cable runs are a common scenario.

The Megger DLRO2 expands its application range by offering safe and reliable testing of inductive loads. These loads, commonly found in transformers and motors, can pose challenges for traditional ohmmeters. The DLRO2 addresses this concern by incorporating a dedicated test mode specifically designed for inductive loads. This mode allows for safe and accurate testing at 1 Amp, ensuring comprehensive evaluation of your electrical systems. Whether you're working on transformers, motors, or other inductive components, the Megger DLRO2 delivers the confidence you need in your test results.

The Megger DLRO2 1012-280 isn't just about exceptional functionality; it's built to withstand harsh environments. This robust ohmmeter boasts an IP54 rating, signifying its exceptional protection against dust and moisture ingress. Whether you're facing the elements during outdoor testing or working in dusty industrial settings, the Megger DLRO2 can handle it all. This level of durability ensures reliable performance and minimizes downtime due to environmental factors.

Safety is paramount when dealing with electrical measurements. The Megger DLRO2 1012-280 prioritizes user safety by adhering to the industry's most stringent standards. It carries a CAT III 600V/CAT IV 300V safety rating, guaranteeing the highest level of protection for technicians working on low-voltage electrical systems. Additionally, the DLRO2 features an active protection mechanism that safeguards against inadvertent live connections. This eliminates the risk of blown fuses and ensures user safety during testing procedures. With the Megger DLRO2 1012-280, you can focus on the task at hand with peace of mind. Login to see DLRO2 price.

Features

• New ‘Difference Meter’ for quick comparison of results.
• Rotary dial test function selection.
• Unidirectional or bidirectional test options on normal resistance test mode.
• Secondary display field showing either forward and reverse measurement results or previous two test results, allowing three test results to be on display at any time for easy comparison.
• Current reversal capability to cancel standing EMF.
• Noisy connection warning, showing when electrical noise or noise from poor clip / probe connections is present.
• Test currents selectable from 1 mA to 2 A
• Capable of 500 measurements from a single charge.
• Supplied with compact CATIII 600 V / CATIV 300 V rated kelvin clip test leads.

Benefits

• Easily select functions using the rotary dial.
• Option to run the test in bidirectional mode or in unidirectional mode to save time and battery power.
• The ability to view 3 results on the screen at any time makes it ideal for 3-phase systems.
• Overcome the effects of standing EMF voltages using the bidirectional test mode. Forward and reverse results can be viewed on the secondary display.
• For stability of results, the instrument will warn you when electrical noise, or noise from poor clip/probe connections, is present.
• Keeps testing as long as you can, with as many as 500 x 2 A - 3 second tests from a full charge.
• Supplied with compact CATIII 600 V/CATIV 300 V rated kelvin clip test leads

Capabilities

• Normal resistance mode (μΩ)
• Fast/long test leads test mode (mΩ)
• Inductive resistance mode (μΩ)

Specifications

PHYSICAL

• Dimensions: 8.98 x 4.1 x 2.95 in. (228 x 105 x 75 mm)
• Display: Full LCD color screen with user configurable backlight
• Weight: 32 oz (905 grams)

SAFETY AND ELECTRICAL PROTECTION

• Safety rating: CATIII 600 V / CATIV 300 V to EN 61010, IEC 61010-031 : 2015, IEC 61010-030. Safety category rating valid to altitude of 9842 ft (3000 m).
• Live voltage: Active live voltage protection to 600 V between any test terminals without blowing a fuse. Live voltage warning on display and audible when >5 V is applied between any test terminals. Fuse protected to 1000 V, fuses are not user changeable.

BASIC INFORMATION

CHARACTERISTICS

* Megger 1012-280 technical specifications is provided for reference only. Avionteq cannot ensure accuracy of the technical specifications presented herein. The technical data may not relate entirely to all model and versions of the 1012-280 such as the models sold by Avionteq.
