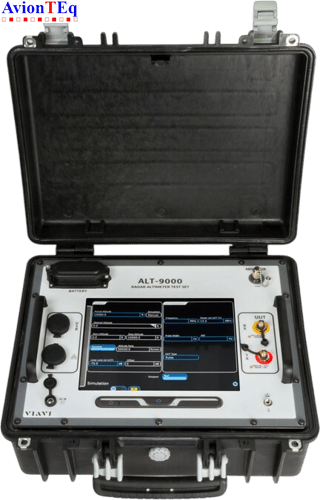

The VIAVI ALT-9000 is a portable universal radio altimeter flight line test set designed to test and troubleshoot installed radio altimeter systems. It uses true RF time delay and path loss simulation to replicate real operating conditions for FMCW, pulse, Low Probability of Intercept (LPI), Combined Altitude Radar Altimeter (CARA), and next-generation systems. It helps maintenance teams isolate faults to antennas, coaxial cables, LRUs, or indicators—reducing unnecessary component replacements and downtime.
The price and features make it a very attractive option compared to similar altimeter test sets available on the market. Request a quote now.
Features
- Universal support for FMCW, pulse, LPI, CARA, and advanced radio altimeters
- True RF delay and path loss altitude simulation
- Direct connection to TX/RX ports or aircraft antennas via couplers
- Large color touchscreen display
- Measures TX power, TX frequency, FM deviation, sweep rate, pulse width, and PRF
- Programmable dynamic climb/descent profiles
- Battery-operated portable design
- Rugged enclosure for flight line or bench use
- Software upgradeable platform
Benefits
- Speeds troubleshooting of installed radio altimeter systems
- Reduces unnecessary LRU swaps and maintenance cost
- Simulates real in-flight operating conditions
- Improves testing accuracy with RF-based delay models
- Supports multiple aircraft platforms with one test set
- Portable for hangar, ramp, or field maintenance use
Application
It is used for radio altimeter testing, troubleshooting faulty antennas or cabling, validating cockpit indicators, performing return-to-service checks, conducting scheduled avionics maintenance, and supporting bench or flight line testing of commercial, business jet, military, and rotorcraft radio altitude systems.
Compatible Aircraft:
Compatible with aircraft using 4.2–4.4 GHz radio altimeter systems, including many commercial airliners, regional aircraft, business jets, helicopters, military aircraft, and special mission platforms. Typical applications include aircraft from Boeing, Airbus, Bombardier, Gulfstream Aerospace, Embraer, Textron Aviation, and various military platforms.
Specifications
- Frequency Range: 4.20 GHz to 4.40 GHz
- Altitude Simulation Range: 5 ft to 10,000 ft
- Optional Altitude Range: 16,000 ft and 25,000 ft
- Altitude Resolution: 5 ft
- Altitude Accuracy: ±1 ft, ±1% of simulated altitude
- TX Power Measurement: FMCW 4 mW to 2 W / Pulse 1 mW to 300 W peak
- Linear Altitude Rate: 1 to 120,000 fpm
- Connector: TNC x 2
- Display: 12-inch color LCD touchscreen
- DC Input Voltage: 11 to 32 VDC
- Battery Life: More than 4 hours
- Operating Temperature: -10°C to 55°C
Options Available
- ALT-9000OPT1 – 16,000 ft and 25,000 ft extended altitude range
- Transit/storage case options
- Regional power cord kits
- Software updates and future capability enhancements
Additional Accessories
- Antenna couplers
- RF cable sets
- Power supply / charger
- Transit case
- Replacement battery packs
- Operator manuals and setup guides
Basic Information
|
Part Number
|
ALT-9000
|
|
Alternate Number
|
ALT9000 / ALT-9000B
|
|
Manufacturer
|
VIAVI Solutions
|
Shipping Details
|
Estimated Shipping Weight
|
Approx. 62 lbs (28.1 kg) with case
|
|
Estimated Shipping Dimensions
|
Approx. 33.7 x 28.5 x 16.4 in
|
|
Weight (test set only)
|
32 lbs (14.5 kg)
|
|
Dimensions (test set only)
|
18.6 x 16.3 x 8.4 in
|
* The technical specifications is provided for reference only. Avionteq cannot ensure accuracy of the technical specifications presented herein. The technical data may not relate entirely to all model and versions of the ALT-9000 such as the models sold by Avionteq.
