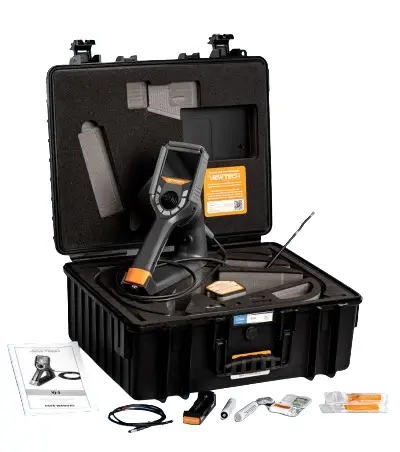

VJ-3 (Viewtech Borescopes) Features and Specifications *

The ViewTech VJ-3 Video Borescope is designed to deliver advanced inspection capabilities in a lightweight and portable package. With its joystick-controlled 360° articulation, operators can easily maneuver the camera tip with precision, making it highly effective for accessing difficult-to-reach areas. The rugged insertion tubes, built with patented EasyGlide tungsten sheathing, ensure smooth operation and durability even in demanding environments, while the IP67 rating provides added protection during inspections.

The unit’s built-in 3.5″ IPS anti-glare LCD screen eliminates the need for an external monitor, allowing for immediate viewing in bright or low-light conditions. High-intensity LED illumination, adjustable through a six-step brightness control, provides clear visibility in dark spaces, while a 4x digital zoom enhances image detail. With on-board image and video processing, operators can capture, store, and review inspection results directly on the device, streamlining workflows in the field.

Designed for user comfort and efficiency, the VJ-3 features an ergonomic pistol-grip design and operates cord-free with a rechargeable Li-ion battery that delivers up to four hours of runtime. Its compact, standalone design allows for true portability, while data transfer is simplified with SD card storage, USB, and HDMI/TV output options. Together, these features make the VJ-3 a versatile and reliable inspection tool for a wide range of industries, from aviation and power generation to general industrial maintenance.

The Viewtech VJ-3 price and features make it a very attractive option compared to similar borescope/fiberscope test sets available on the market.

Borescopes - ViewTech

Specifications & Features

• Multiple diameters (available in 2.2mm, 2.8mm, 3.9mm, 6.0mm versions) and lengths (1.0m – 8.0m)
• Patented EasyGlide, 4-layer Tungsten sheathing (IP67 rated)
• Joystick-controlled, 360° camera articulation
• IPS anti-glare LCD display (3.5", 640×480)
• 4x digital zoom
• 6-stage LED illumination (up to 20,000 lux depending on model)
• On-board image & video processing
• Image capture trigger
• Rechargeable Li-ion battery (≤ 4 hours runtime)
• High-capacity SD storage (16GB) + USB connectivity
• Ergonomic pistol-grip design
• Lightweight, ultra-portable design (no external monitor needed)

Benefits

• Responsive & accurate articulation (no calibration required, holds position when joystick released)
• Rugged durability (IP67 insertion tube, IP54 base unit)
• Cord-free operation (long battery life, compact handheld design)
• Standalone operation (no need for external PC/monitor)
• Versatile inspection in tight or harsh environments (chemical and temperature resistant)
• Convenient documentation (photo/video capture with audio, SD storage, HDMI/TV output)

Capabilities

• Capture & store photos/videos with or without audio
• Playback, thumbnail preview, and file management
• Image rotation, live freeze, zoom in/out
• Adjustable LED brightness (6-step)
• Language support: English, Spanish
• External I/O ports: SD card, micro USB, TV Out (NTSC/PAL), HDMI
• Headset/microphone support (3.5mm jack)

BASIC INFORMATION

CHARACTERISTICS

* Viewtech Borescopes VJ-3 technical specifications is provided for reference only. Avionteq cannot ensure accuracy of the technical specifications presented herein. The technical data may not relate entirely to all model and versions of the VJ-3 such as the models sold by Avionteq.

Viewtech Borescopes VJ-3 Borescope / Fiberscope Test Set to Buy, Rent, Sell or Trade in.

Avionteq offers both new and refurbished or used Viewtech Borescopes Borescope Test Set for sale or rent at most competitive price. All refurbished equipment are thoroughly tested and come with our warranty and fresh calibration certificate(when required). You can also sell your excess / surplus Viewtech Borescopes VJ-3 or receive trade -in credit towards purchase of other test equipment.
